DYC-JQ series angle-pass electromagnetic vacuum differential pressure type with inflation valve
DYC-JQ series angle-pass electromagnetic vacuum differential pressure with inflation valve is a new type of vacuum valve installed on the air inlet of a mechanical vacuum pump. Its working principle is that the mechanical pump and valve are connected to the same circuit. When the vacuum pump needs to work When the operation is stopped or the power is suddenly cut off, the valve uses the pressure difference between atmosphere and vacuum to push the piston to automatically close the valve, cut off the connection between the pump and the vacuum system, maintain the vacuum degree of the vacuum system, and amplify the air to the vacuum pump to prevent the vacuum pump oil from returning to vacuum The system is conducive to restarting the vacuum pump. When the vacuum pump starts again, the valve uses the spring to push the piston open to open the valve.
The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application |
104Pa~10-3Pa |
Valve leakage rate | <10-4(Pa.L/S) |
Medium temperature | -25℃~80℃ |
Opening and closing time | <35 |
Voltage | AC220V |
Installation method | Level |
Body material: stainless steel
Model | Diameter (DN) |
DYC-JQ25-KF | 25 |
DYC-JQ4O-KF | 40 |
Body material: aluminum alloy
Model | Diameter (DN) |
DYC-JQ25 | 25 |
DYC-JQ32 | 32 |
DYC-JQ40 | 40 |
Body material: carbon steel nickel plated
Model | Diameter (DN) |
DYC-JQ50 | 50 |
DYC-JQ65 | 65 |
DYC-JQ80 | 80 |
DYC-JQ100 | 100 |
DYC-JQ150 | 150 |
DYC-Q series straight-through electromagnetic vacuum differential pressure with inflation valve
DYC-Q series straight-through electromagnetic vacuum differential pressure belt inflation valve is a new type of vacuum valve installed on the air inlet of a mechanical vacuum pump. Its working principle is that the mechanical pump and valve are connected to the same circuit. When the vacuum pump needs to stop running due to work , Or a sudden power failure, the valve uses the pressure difference between atmosphere and vacuum to automatically close the valve, cut off the connection pump of the pump and the vacuum system, maintain the vacuum degree of the vacuum system, and amplify the air to the vacuum pump to prevent the vacuum pump oil from returning to the vacuum system, which is beneficial The vacuum pump restarts. When the vacuum pump restarts, the valve uses gravity to automatically drop the valve plate to open the valve.
The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application | 104Pa~10-2Pa |
Valve leakage rate | <10-4(Pa.L/S) |
Medium temperature | -25℃~80℃ |
Opening and closing time | <35 |
Voltage | AC220V |
Installation method | Vertical |
Model | Diameter (DN) |
DYC-Q25 | 25 |
DYC-Q32 | 32 |
DYC-Q40 | 40 |
DYC-Q50 | 50 |
DYC-Q65 | 65 |
DYC-Q80 | 80 |
DYC-Q100 | 100 |
DYC-Q160 | 160 |
GDQ-J series angle-pass type high vacuum electric dynamic baffle valve
GDQ-J series angle-pass type high vacuum electric dynamic baffle valve is powered by compressed air, and the direction of the air path is controlled by a solenoid valve, which pushes the cylinder piston to reciprocate and drives the reciprocating movement of the valve stem to open or close the valve plate. To cut off and connect the vacuum pipeline, the valve features stable switching and high stability. The cylinder configuration can be reversed to one atmosphere or open in the atmosphere on the vacuum side. In particular, the shaft seal adopts bellows for more reliable sealing and can be used for a long time. Work under frequent switching times.
The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application (shaft seal bellows) | 105Pa~10-6Pa |
Scope of application (shaft seal rubber) | 105Pa~10-4Pa |
Valve leakage rate (shaft seal bellows) | <10-7(Pa.L/S) |
Valve leakage rate (shaft seal rubber) | <10-5(Pa.L/S) |
Medium temperature (sealing material fluorine rubber | -30℃~150℃ |
Medium temperature (sealing material nitrile rubber) | -25℃~80℃ |
Installation method | Arbitrary |
Voltage | AC220V or DC24V |
Air pressure | 0.4MPa-0.8MPa |
Signal feedback | Standard delivery: Without feedback signalSpecial designation: DC/AC5-240V |
GD-J Series Angle Pass Type High Vacuum Manual Baffle Valve
GD-J series angle-pass high-vacuum manual baffle valve is operated, which is used for connection and cut-off of vacuum pipeline.
The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application (shaft seal bellows) | 105Pa~10-2Pa |
Scope of application (shaft seal rubber) | 105Pa~10-4Pa |
Valve leakage rate (shaft seal bellows) | <10-7(Pa.L/S) |
Valve leakage rate (shaft seal rubber) | <10-5(Pa.L/S) |
Medium temperature (sealing material fluorine rubber | -30℃~150℃ |
Medium temperature (sealing material nitrile rubber) | -25℃~80℃ |
Installation method | Arbitrary |

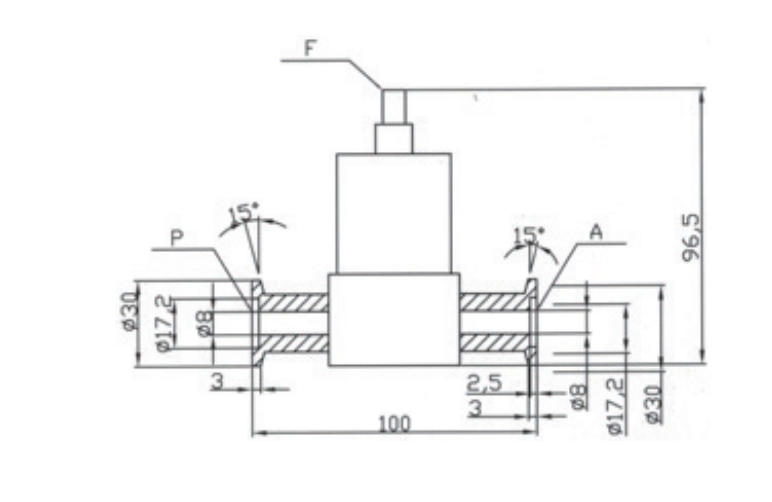

GDC-Q5 type GDC-Q5 series high vacuum solenoid valve
The GDC-Q5 high vacuum solenoid valve is connected to the high and low vacuum system. The valve is energized and the valve plate is opened, and at the same time, the gas inlet is closed, and the P and A end pipes are connected: when the power is off, the valve plate is closed, and the P and A ends are cut off Pipelines to ensure the vacuum of the system, and at the same time open the gas filling port and inflate to the A side through the F end.
The GDC-5 high vacuum solenoid valve is connected to the high and low vacuum system. The valve is energized and the valve plate is opened. It is used to connect or energize the valve plate to open and cut off the airflow of the vacuum system. It can also be used to inflate the vacuum system. The valve is energized and opened.
Main technical performance
Scope of application | 105Pa~10-1Pa |
Valve leakage rate | <10-5(Pa.L/S) |
Medium temperature | -25℃~150℃ |
Opening and closing time | <0.25 |
Voltage | AC220V or DC24V |
Installation method | Arbitrary |
Connection method | Gb4982 |
GI series high vacuum butterfly valve
The Gl series high vacuum butterfly valve is used to connect and cut off the vacuum pipeline. The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application | 104Pa~10-5Pa |
Valve leakage rate | <10-6(Pa.L/S) |
Medium temperature | -25℃~80℃ The sealing material is nitrile rubber -30℃~150℃ The sealing material is fluorine rubber |
Model | Diameter (DN) |
GI-32 | 32 |
GI-40 | 40 |
GI-50 | 50 |
GI-63 | 65 |
GI-80 | 80 |
GI-100 | 100 |
GI-150 | 150 |
GU series vacuum ball valve
The GU series vacuum ball valve is used to connect or cut off the vacuum pipeline or to adjust the flow rate. The valve is a straight-through type and is sealed by a spherical surface. It can be used in a vacuum state or in a low pressure state and can be installed at any position.
The applicable medium is acid, alkaline gas or liquid.
Main technical performance
Applicable scope GB/T6070 loose flangeApplicable scope GB/T6070 loose flange | 10×105Pa~10-4Pa |
Applicable scope GB4982 quick release | 2×105Pa~10-4Pa |
Valve leakage rate | <10-5(Pa.L/S) |
Medium temperature | -30℃~150℃ |
Model | Diameter (DN) |
GU-16 | 16 |
GU-25 | 25 |
GU-32 | 32 |
GU-40 | 40 |
GU-50 | 50 |
GU-63 | 63 |
GU-80 | 80 |
Model | Diameter (DN) |
GU-16-KF | 16 |
GU-25-KF | 25 |
GU-40-KF | 40 |
GID series electric high vacuum butterfly valve
The GID series electric true high altitude butterfly valve adopts a rotary electric and electronically adjustable valve drive. It can be controlled by an external power source (using a manual index switch or computer control) or an external input signal to achieve the valve opening and closing intermediate position control , So as to achieve the purpose of connecting or cutting off the air flow in the vacuum pipeline.
The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application (Pa) | 105~1.3×10-5 |
Valve leakage rate (Pa.L/S) | ≤1.3×10-6 |
Opening and closing time (S) | DN≤63 20; 80≤DN=200 30; DN≤250 48 |
Medium temperature (℃) | -25~+80 (The sealing material is nitrile rubber) -30~+150 (The sealing material is fluorine rubber) |
Flange standard | JB919 |
Installation location | Arbitrary |
Control circuit | Standard factory: AC220V/50Hz switch type Special designation: AC380V; DC24V switch type 4~20mADC adjustable type |
Signal feedback | Standard factory: with passive contact type Special designation: 4~20mADC adjustable type |
GIQ-type series pneumatic high vacuum butterfly valve
The pneumatic actuator of the GlQ-type series of pneumatic high vacuum butterfly valves is powered by compressed air and adopts a rotary electric and electronic regulating valve drive. It can be switched by an external power supply (manual index switch or computer control) or external input signal , To achieve the control of the valve opening and closing the middle position, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum pipeline.
The applicable working medium is air and non-corrosive gas.
Main technical performance
Scope of application (Pa) | 105~1.3×10-5 |
Valve leakage rate (Pa.L/S) | ≤1.3×10-6 |
Medium temperature (℃) | -25~+80 (The sealing material is nitrile rubber) -30~+150 (The sealing material is fluorine rubber) |
Flange standard | 0.4~0.6 |
Flange standard | JB919 |
Installation location | Arbitrary |
Control circuit | Standard factory: AC220V/50Hz Special designation: AC110V; DC24V; DC12V, etc. |
Signal feedback | Standard factory: valve position indicator Special designation: micro switch; intelligent 4~20mA |
Signal feedback | Standard factory: double acting Special designation: single-acting (with spring return) Optional normally open or normally closed |
